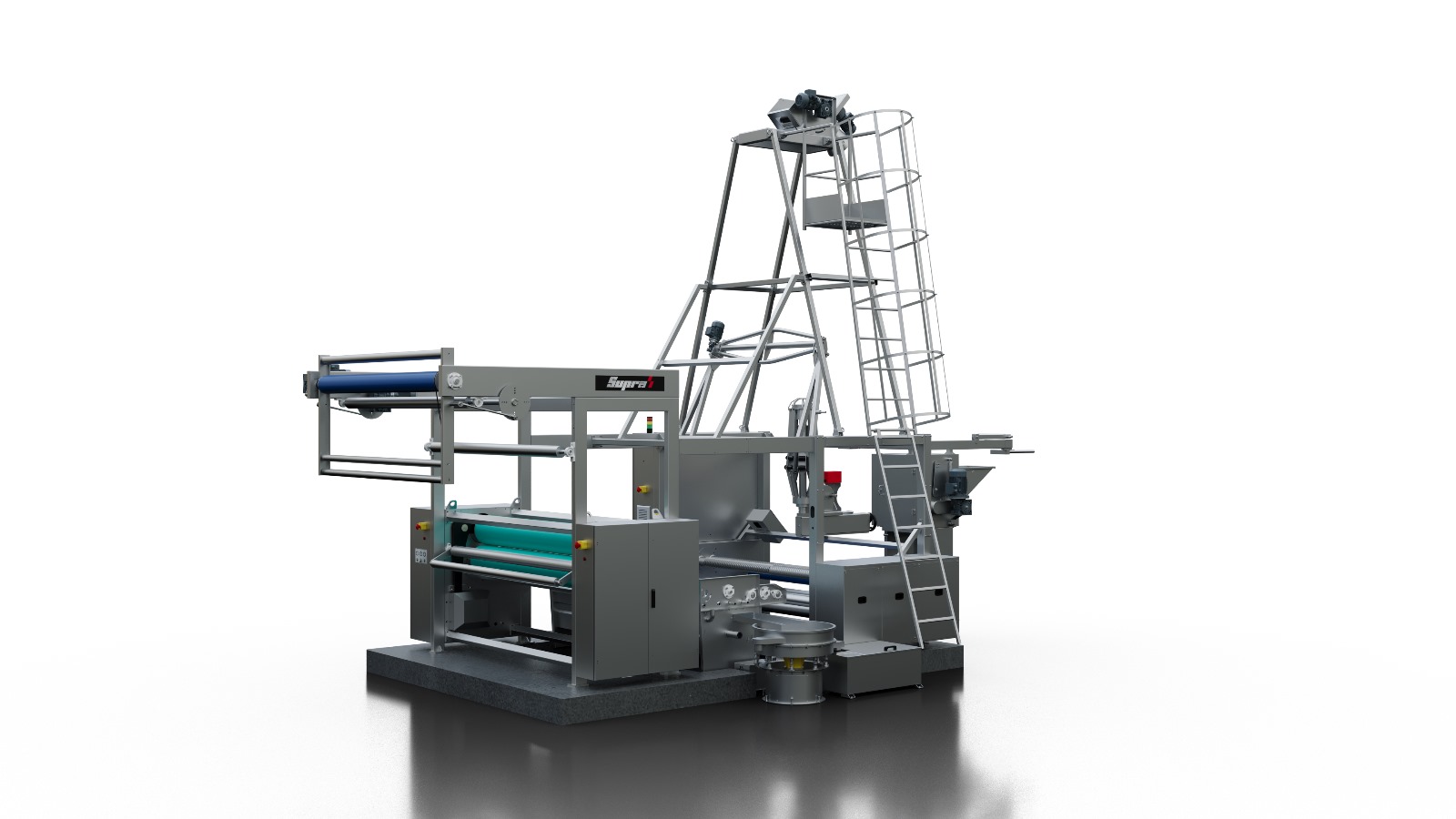

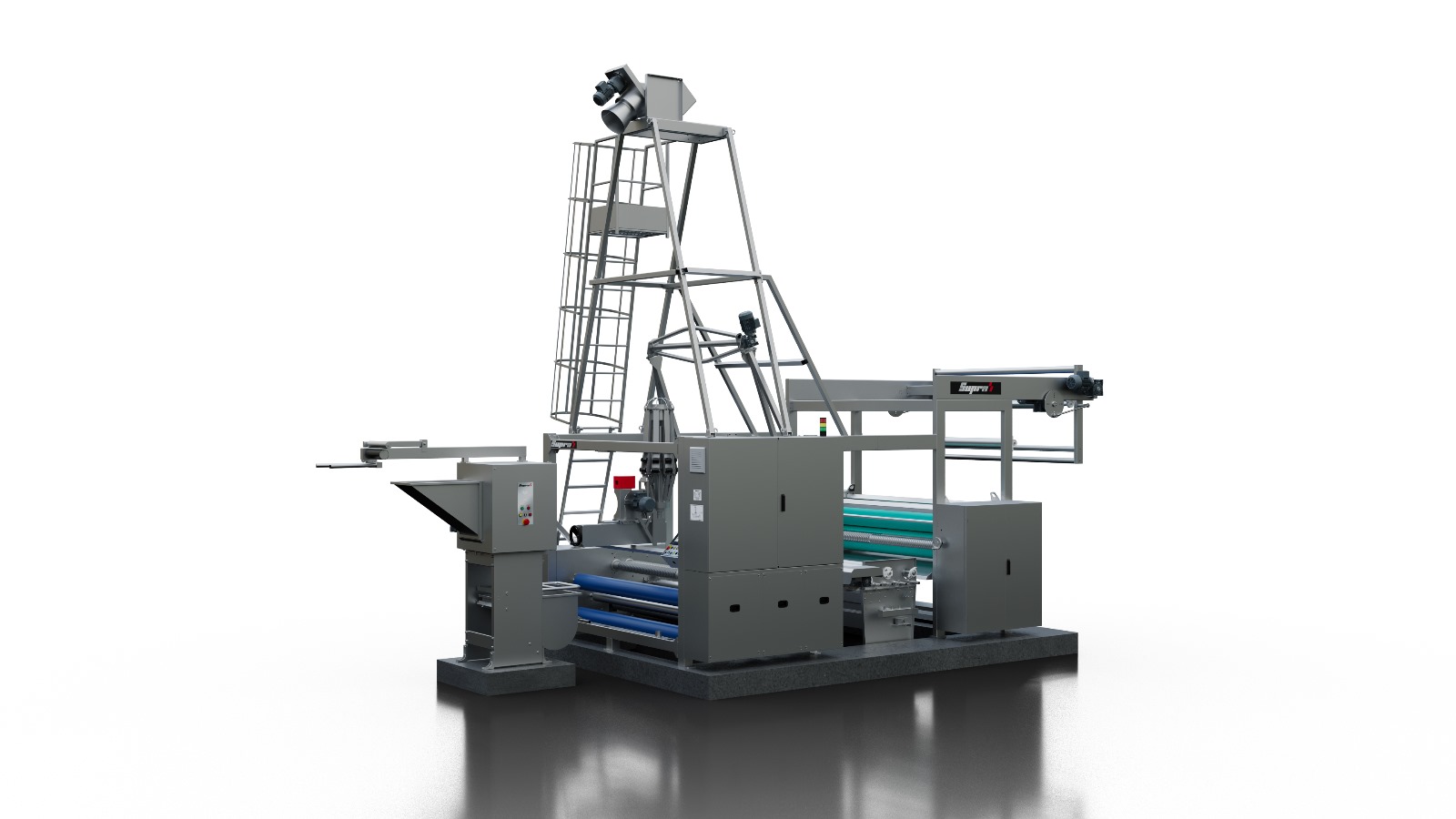

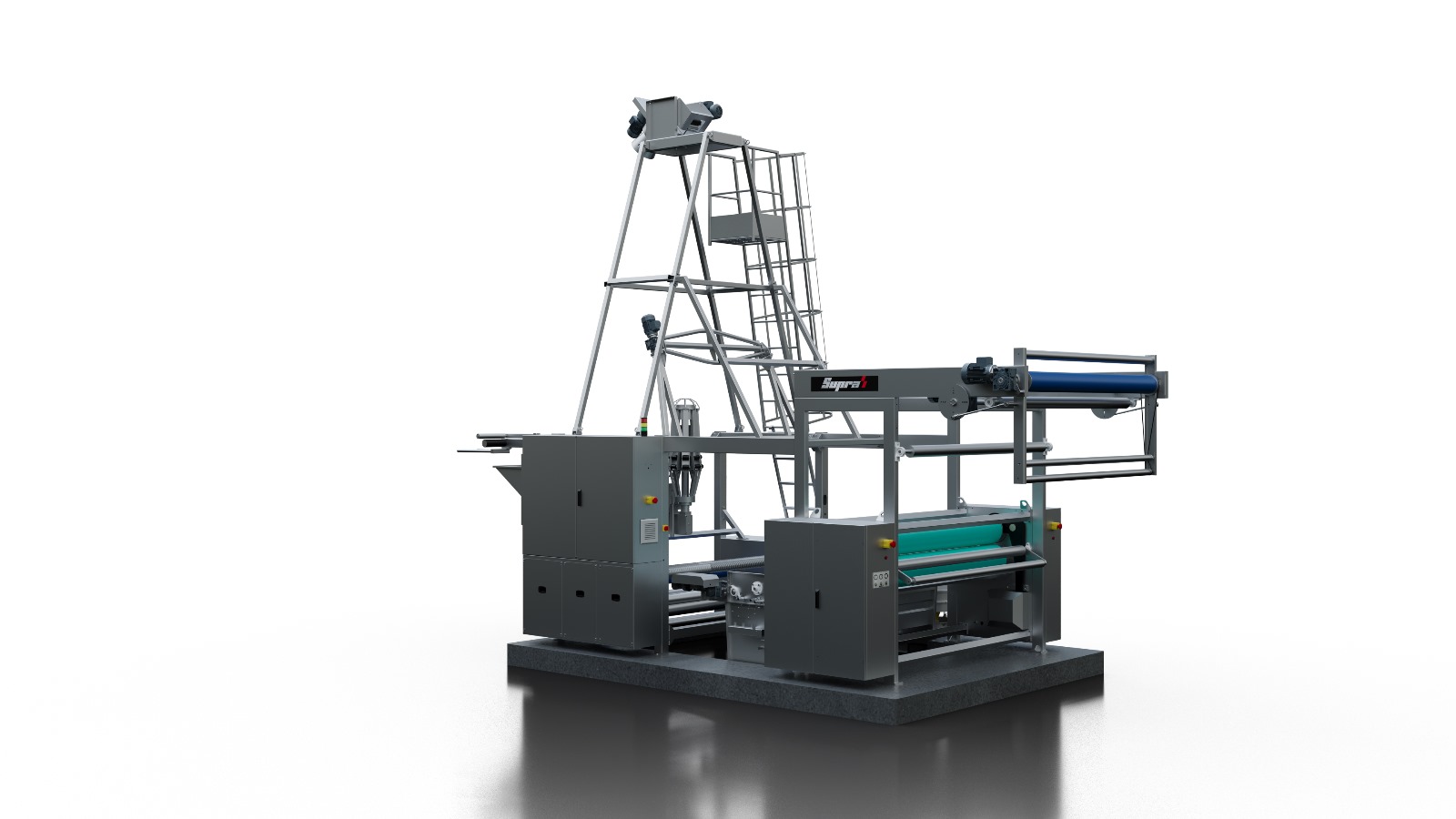

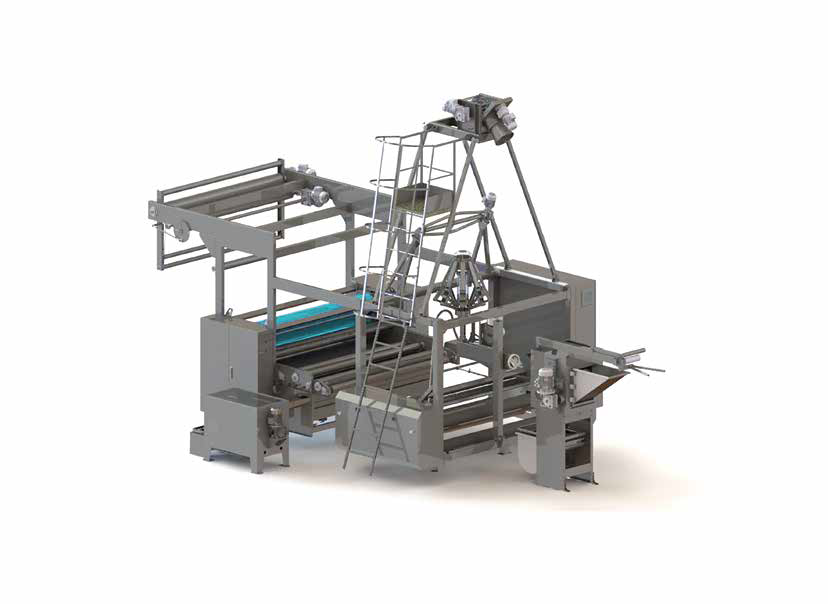

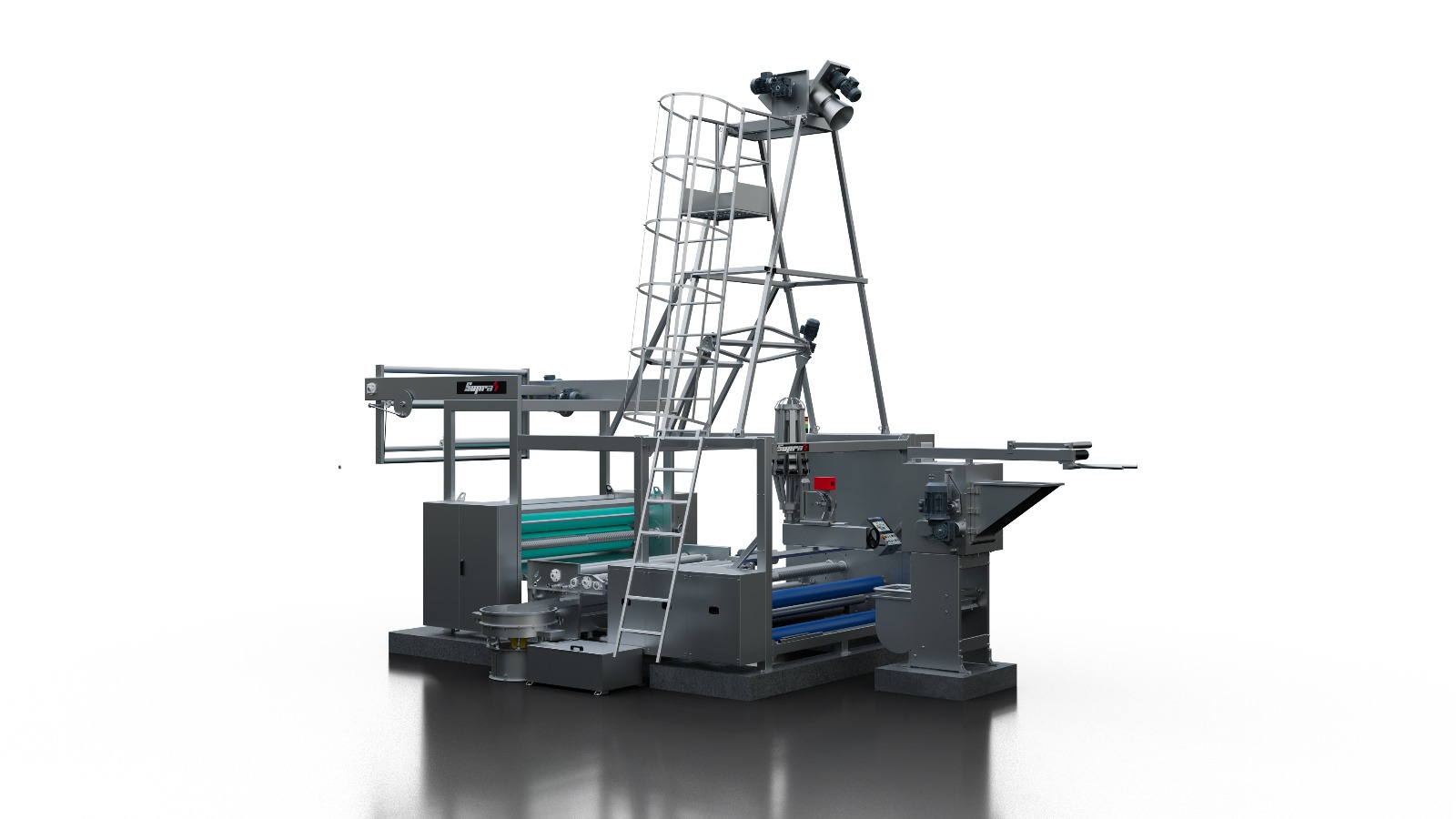

Rope Opening & Tubular Fabric Slitting Line
Supramac © Rapida Rope Opening and Tube Cutting Line is designed to cut or open the woven/knitted fabric in rope form after wet process. Thanks to its smooth fabric flow path and high precision synchronization, it provides high working speeds and excellent results in tube cutting and wet opening.
Technical Specifications
Material
:
AISI 304
Tubular Fabric Diameter
:
max. 1200mm
Sensor type
:
Supra Cam Falcon vision sistem. CCD kamera teknolojisi (12 MP)
Padder roller diameter
:
290 mm
Working width
:
1800 mm - 3400 mm
Maximum Squeezing Force
:
50 kg/cm
Operating temperature
:
0 degree C to + 55 degree C
Operating Voltage
:
3x400VAC-50Hz
Noise level
:
<75db(A)
Teleservice
:
Standard
