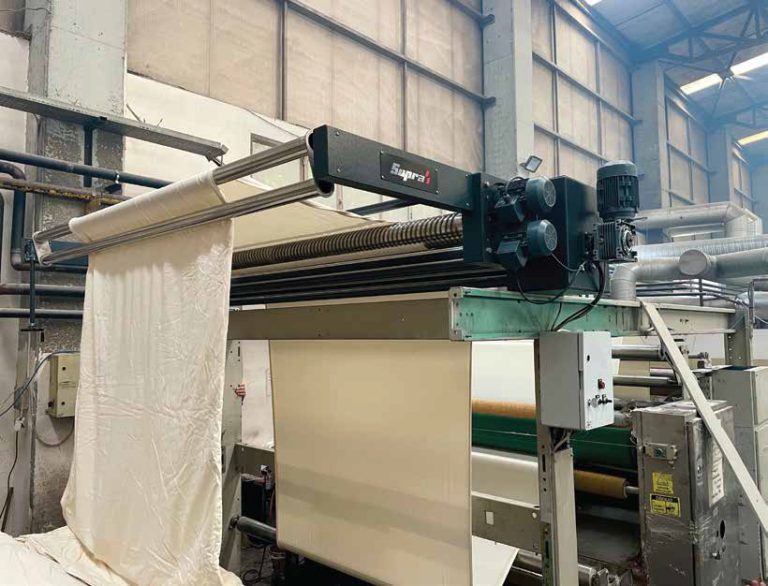

SGR 5000 Fabric Centering Unit

SUPRAMAC® SGR 5000 is a slatted guide roller that centers woven or knitted fabrics in the fabric inlet unit of finishing machines such as stenter, open width compactor etc. The fabric position is detected by the SUPRAMAC IWS 100 Infrared Wide Band Sensor. The pneumatic or motorized slatted roller brings the fabric to the desired position by rotation (left, left/right movement of the slats). The fabric is completely opened and fed to the slatted fabric centerer by the 360° angle controlled opening roller unit SR 55. The fabric pulling angle of the two rollers can be adjusted by a hand wheel.
